BF KOGYO

Home > Products > BF KOGYO > SEM SERIES

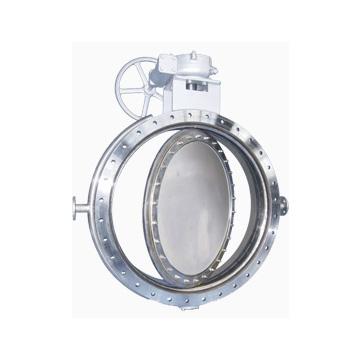

SEM SERIES
Valve made of steel plate

[Casting Products]
Tight shutoff of any fluid can be materialized by an exquisite combination of Metal Seat with elasticity and Disc built up with stellite.
Its double eccentric structure can lessen scuffing and wearing on Metal Seat. Hence,Valve can be operated with low torque.

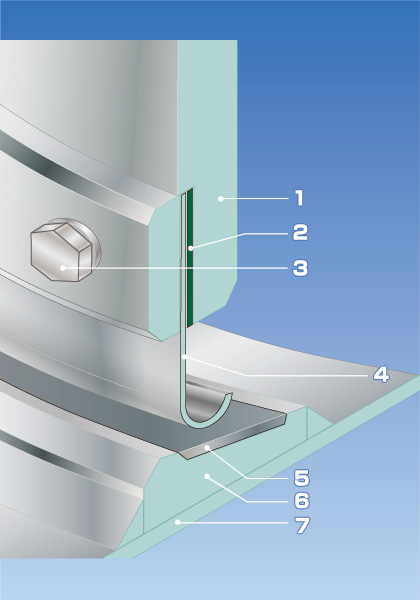

  • Product Details



    1. Disc
    2. Gasket
    3. Seat retainer bolt
    4. Metal seat(SUS)
    5. Stellite
    6. Body seat
    7. Body

    · Electric
    E Type:Electric motor
    · Pneumatic
    A Type:Double acting

    · Metal seat(SUS)

    【Standard specifications】

    Size

    650A ~ 1800A

    Working pressure

    MAX 0.1MPa

    Working temperature

    MAX 400℃

    Flanges

    JIS5K, JIS10K, ANSI, DIN,  Special

    【Standard materials( JIS code)】

    Body

    SS400、SUS304、SUS316、SUS316L

    Disc

    SS400、SUS304、SUS316、SUS316L

    Shaft

    SUS304、SUS316、SUS316L

    Seat SUS304、SUS316、SUS316L
    【Leak rate】

    Leakage Rate

    ANSI CLASS V

    【Standard test pressure(pneumatic)】

    Body shell

    Working Pressure×1.5

    Seat

    Working Pressure×1.1
