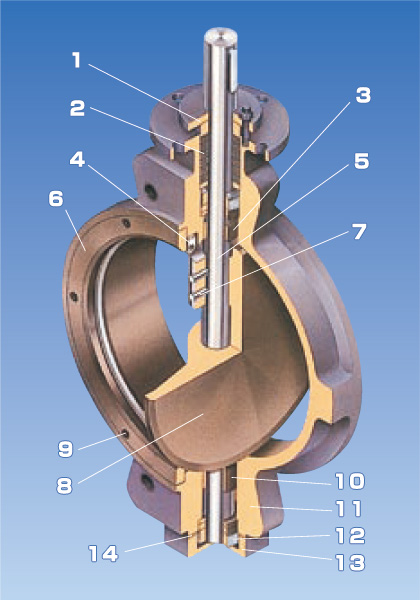

1. Gland bush
2. Gland packing
3. Upper bearing
4. Shaft
5. Seat
6. Seat retainer
7. Disc set pins
8. Disc
9. Seat retainer bolt
10. Lower bearing
11. Body
12. Thrust block
13. Bottom cover
14. Bottom cover gasket |
|
|
|

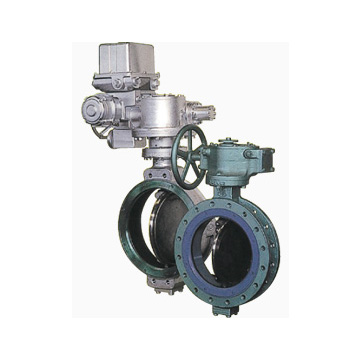

| 【Standard specifications】 |
M（wafer type）
|
Size
|
100A ~ 1000A
|
|
Working pressure
|
MAX 1.0MPa
|
|
Flanges
|
JIS, ANSI
|
|
Body materials
|
FC, SCPH2, SCS13, SCS14, SCS16
|
|
Disc materials
|
SCPH2, SCS13, SCS14, SCS16
|
|
M16（wafer type）
|
Size
|
100A ~ 1000A
|
|
Working pressure
|
MAX 1.6MPa
|
|
Flanges
|
JIS
|
|
Body materials
|
FC, SCPH2, SCS13, SCS14, SCS16
|
|
Disc materials
|
SCPH2, SCS13, SCS14, SCS16
|
|
MF（flange type）
|
Size
|
150A ~ 1000A
|
|
Working pressure
|
MAX 1.0MPa
|
|
Flanges
|
JIS, ANSI
|
|
Body materials
|
SCPH2, SCS13, SCS14, SCS16
|
|
Disc materials
|
SCPH2, SCS13, SCS14, SCS16
|
|
MF16（flange type）
|
Size
|
250A ~ 1000A
|
|
Working pressure
|
MAX 1.6MPa
|
|
Flanges
|
JIS
|
|
Body materials
|
SCPH2, SCS13, SCS14, SCS16
|
|
Disc materials
|
SCPH2, SCS13, SCS14, SCS16
|
|
|
※ The materials of the body, disc and shaft can be chosen freely as required.
The flange type obtains the recognition of the model of various classifications.
|
| 【Standard test pressure（pneumatic）】 |
|
Body shell
|
1.5MPa (M, MF), 2.4MPa (M16, MF16)
|
|
Seat
|
1.1MPa (M, MF), 1.8MPa (M16, MF16)
|
|
|
NBR
|
-20 ~ +80℃
|
|
EPDM
|
-10 ~ +120℃
|
|
VITON
|
-10 ~ +150℃
|
| PTFE |
-20 ~ +180℃
|
|
METAL
|
-20 ~ +450℃
|
|
