D SERIES

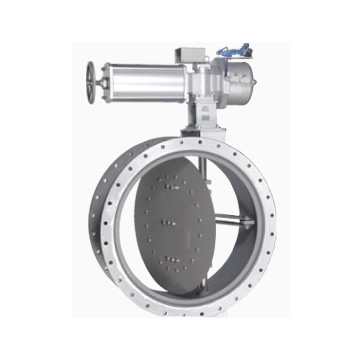

This steel plate shutoff valve features lightweight, low cost and high air-tightness. It gives absolute seal tightness for gases and air from room temperature to ultra high temperatures.

[Casting Products]
This steel plate airtight damper is mainly used as a shutoff valve for high temperature gases (600℃ max.) and gives unrivaled sealing performance. It is used for a wide range of applications including steel works, boiler equipment, fumigation equipment, smoke collector ducts, and solvent recovery.
  • Product Details

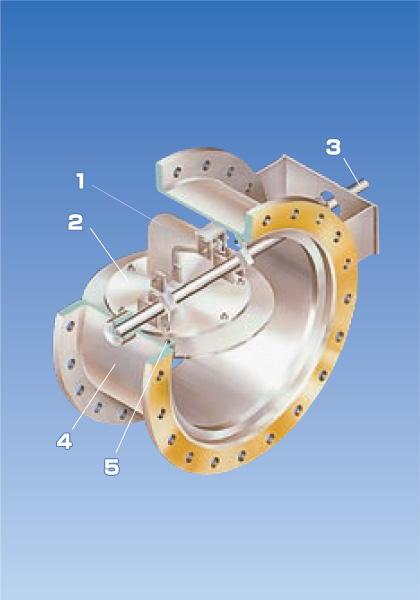

    1. Guide lever
    2. Disc
    3. Shaft
    4. Body
    5. Seat


    The D series tight shutoff damper valve disc rotates and slides simultaneously by turning the shaft 90° thanks to its mechanical structure system.
    · Non-asbestos
    · Rubber, Teflon, etc
    · Metal seat
    【Standard specifications】

    Size

    300A ~ 3000A (Square type is also available)

    Working pressure

    MAX 0.05MPa

    Working temperature

    MAX 600℃

    Flange

    JIS, ANSI, Special

    【Standard materials( JIS code)】

    Body

    SS400, SUS304, SUS316, SUS316L

    Disc

    SS400, SUS304, SUS316, SUS316L

    Shaft

    SUS403, SUS304, SUS316, SUS316L

    【Standard test pressure(pneumatic)】

    Body shell

    Max. allowable pressure ×1.5

    Seat

    Max. allowable pressure ×1.1

    【Seat materials】

    NBR

    MAX 80℃

    EPDM

    MAX 120℃

    VITON

     MAX 150℃

    PTFE

     MAX 200℃

    NON A

     MAX 600℃

    METAL

     MAX 600℃
