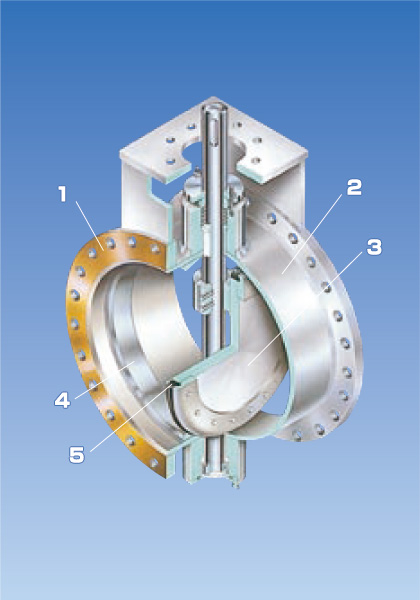

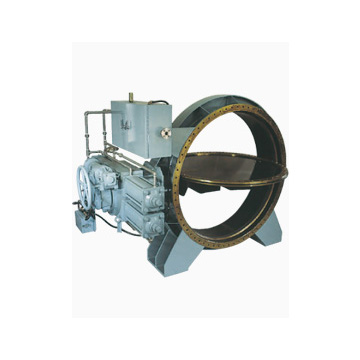

1. Flanges
2. Body
3. Disc
4. Body seat(SUS)
5. Disc seat |
|
|
|
• Disc seat‐jointless seat rings.
• Disc seat‐exposed by tightening and contracted when bolts loosen.
• Seat contact width‐"T", can be fine adjusted in position by tightening or loosing the retainer bolts.
• Variation to form the most suitable contact width to meet present flow pressure without unnatural friction, but keeping perfect sealing and torque for longer lasting sealline.
※ In occasion of replacing disc seat, it can be easily replaced without removing valve itself from the pipe line. |
|
【Standard specifications】 |
Size
|
650A ~ 1000A
|
Working pressure
|
MAX 0.05MPa
(Special MAX 0.5MPa)
|
Flanges
|
JIS, ANSI, DIN, AS, BS
|
|
【Standard materials( JIS code)】 |
Body
|
SS400, SUS304, SUS316, SUS316L
|
Disc
|
SS400, SUS304, SUS316, SUS316L
|
Shaft
|
SUS403, SUS304, SUS316, SS316L
|
|
【Standard test pressure(pneumatic)】 |
Body shell
|
Max. allowable pressure×1.5
|
Seat
|
Max. allowable pressure×1.1
|
|
NBR
|
-10 ~ +80℃
|
EPDM
|
-10 ~ +120℃
|
VITON
|
-10 ~ +150℃
|
PTFE |
-20 ~ +180℃
|
|
