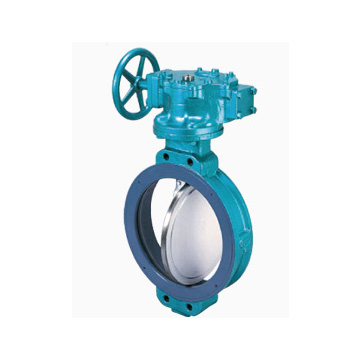

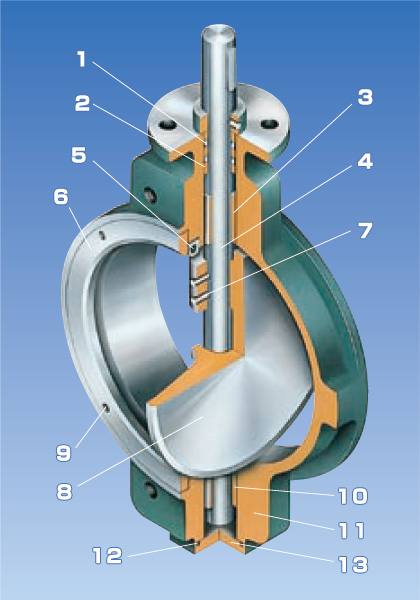

1. Gland packing
2. Thrust block
3. Upper bearing
4. Shaft
5. Seat
6. Seat retainer
7. Disc set pins
8. Disc
9. Seat retainer bolt
10. Lower bearing
11. Body
12. Bottom cover gasket
13. Bottom cover |
|
|
【Standard specifications】 |
G (wafer type)
Size
|
80A ~ 1000A
|
Working pressure
|
MAX 1.0MPa
|
Flanges
|
JIS |
Body materials
|
FC, SCPH2, SCS13, SCS14, SCS16
|
Disc materials
|
SCPH2, SCS13, SCS14, SCS16
|
Shaft materials
|
SUS403, SUS431, SUS304, SUS316
|
|
G16 (wafer type)
Size
|
80A ~ 1000A
|
Working pressure
|
MAX 1.6MPa
|
Flanges
|
JIS
|
Body materials
|
FC, SCPH2, SCS13, SCS14, SCS16
|
Disc materials
|
SCPH2, SCS13, SCS14, SCS16
|
Shaft materials
|
SUS403, SUS431, SUS304, SUS316
|
|
【Standard test pressure(pneumatic)】 |
Body shell
|
1.5MPa (G), 2.4MPa (G16)
|
Seat
|
1.1MPa (G), 1.76MPa (G16)
|
|
NBR
|
-10 ~ +80℃
|
EPDM
|
-10 ~ +120℃
|
VITON
|
-10 ~ +150℃
|
PTFE |
-20 ~ +180℃
|
METAL
|
-20 ~ +200℃
|
|
