CD SERIES
Used extensively in nuclear power plants where very exacting quality control is required.

[Casting Products]

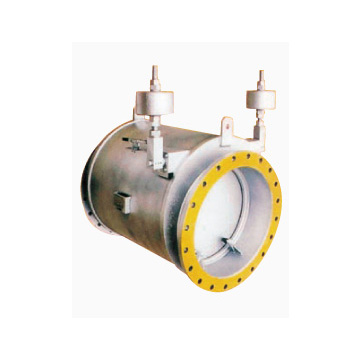

A steel plate damper available with either round or square pipe connection ends. This non-return gravity damper is mainly used in nuclear power facilities for ventilation and air conditioner outlets as well as for transfer. It is equipped with an easily adjustable balance weight to balance the impeller blade gravity and operates reliably on even a slight pressure difference.

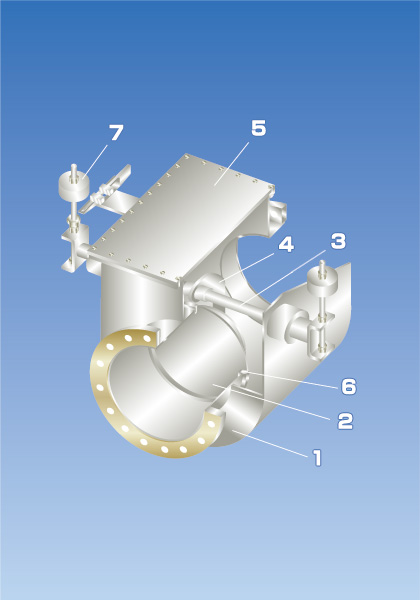

  • Product Details



    1. Flange
    2. Disc
    3. Shaft
    4. Lever
    5. Bonnet
    6. Seat
    7. Counter weight

    【Standard specifications】

    Size

    100A ~ 3000A

    Working pressure

    ~ 0.05MPa

    Working temperature

    ~ 150℃

    Flanges

    JIS、ANSI、DIN、AS、BS、Special

    【Standard materials( JIS code)】

    Body

    SS400、SUS304、SUS316、SUS316L

    Disc

    SS400、SUS304、SUS316、SUS316L

    Shaft

    SUS403、SUS304、SUS316、SUS316L

    【Standard test pressure】

    Body shell

    Fluid pressure×1.5
