Special order valves
Special order valves
Product Details

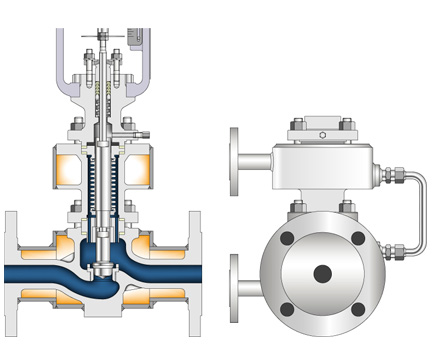

Full-Jacket Bellows Single Seat Control Valve
Control valve where a bellows is installed in the gland, and the valve body and the bellows case are covered with steam jacket.
Model no.
T-8115
Pressure Rating
JIS10K~20K, ASME/ANSI150
End connection standard
Flange RF
Nominal Size (A)
15A~300A
Body materials
SCPH2, SCS13A, SUS304
Jacket Materials
SUS304

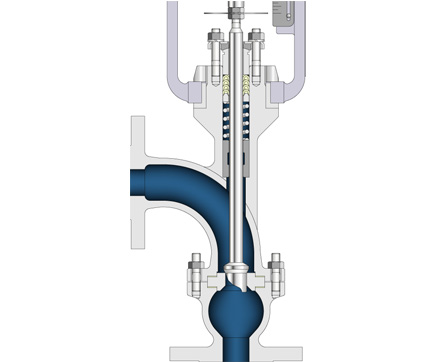

Division Angle Type Control Valve for Slurry Water Solution
Angle-style control valve which features one side cut plug where slurry fluid is hard to clog.
Model no.
T-8720
Pressure Rating
JIS10K
End connection standard
Flange RF
Nominal Size (A)
15A~65A
Body materials
SCS13A, SCS14A
Rubber Lining Separate Body Type Control Valve
Hard natural rubber lining body and PTFE Bellows seal to provide high corrosion resistance and high seal performance with a structure equipped.
Model no.
V-5675
Pressure Rating
JIS10K
End connection standard
Flange FF
Nominal Size (A)
50A~200A
Body materials
FC250+Rubber Lining
Bellows Materials
PTFE-0.55MPaG

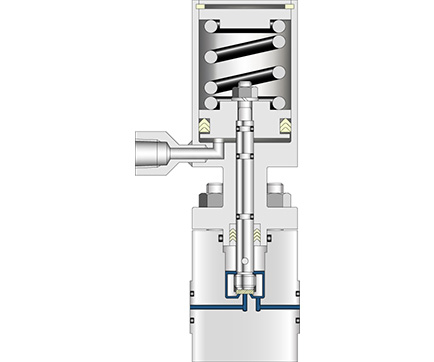

Small On-Off Valve
High-pressure small on-off valve which is integral with the cylinder.
Model no.
V-6500C
End connection standard
Wafer
Pressure Rating
Design Pressure:16MPaG
Design Temp.:40℃
Nominal Size (mm)
2mm
Body materials
SUS304

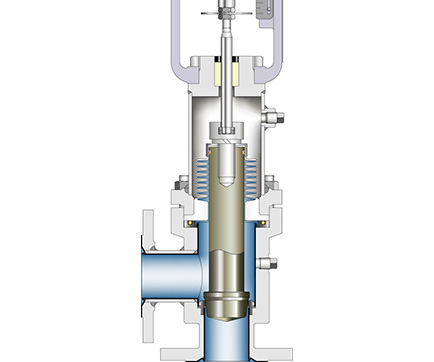

Tantalum Lining Control Valve
Angle-style control valve with tantalum lining which is excellent in corrosion resistance.
Model no.
T-8710
Pressure Rating
JIS10K
End connection standard
Flange RF
Nominal Size (A)
25A~150A
Body materials
SUS316+Tantalum Lining

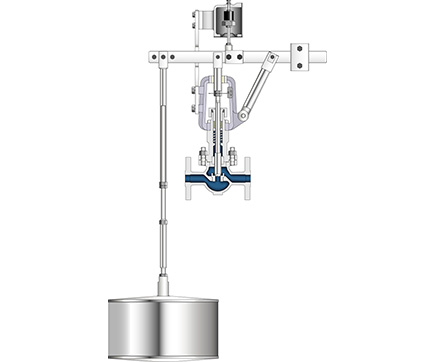

Lever Type Single Seat Float Valve
Single-seated on-off valve whose power source is the buoyancy of the float.
Model no.
V-6420
Pressure Rating
ASME/ANSI 150~300
End connection standard
Flange RF
Nominal Size (A)
20A~25A
Body materials
SCPH2

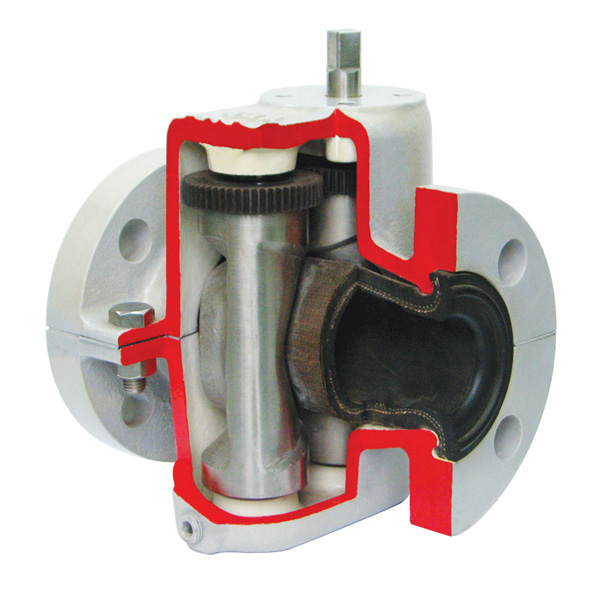

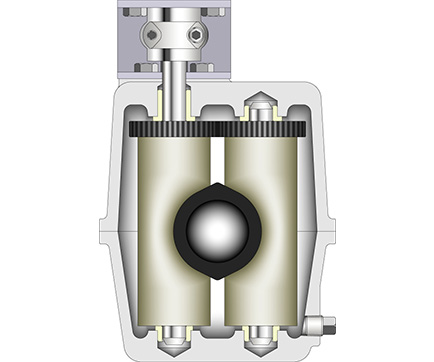

Roller Valve
Control valve where the rotation of two rollers changes the opening area of the sleeve for smooth fluid control.。
Model no.
R-2000
Pressure Rating
JIS10K
End connection standard
Flange RF
Nominal Size (A)
25A~50A
Body materials
FC200, Sleeve:EPDM

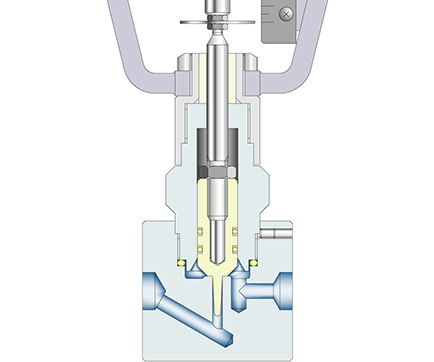

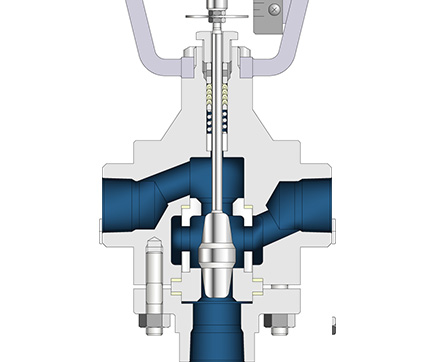

Small 3-Way Type Cntrol Valve
Small 3-way control valve with screwed connection.
Model no.
T-8320
Pressure Rating
ASME/ANSI 150, 600
End connection standard
Threaded ends (Rc · NPT)
Nominal Size (A)
15A, 20A, 25A
Body materials
SUS316
Acid & Alkali Sevice Small Control Valve
Small resin control valve for acid and alkali.
Model no.
T-8050
Pressure Rating
JIS10K
End connection standard
Wafer
Nominal Size (A)
15A, 20A, 25A
Body materials
PVC

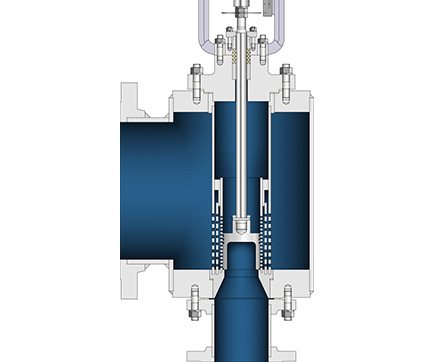

Blow-Off Control Valve for Steam
Blow-off control valve for steam features a cage trim equipped with some tubes with many holes to reduce noise and vibration generated at releasing steam.
Model no.
V-5700C
Pressure Rating
JIS20K (By Spec. Condition)
End connection standard
Flange RF
Nominal Size (A)
By Spec. Condition
Body materials
Stainless Steel Tube

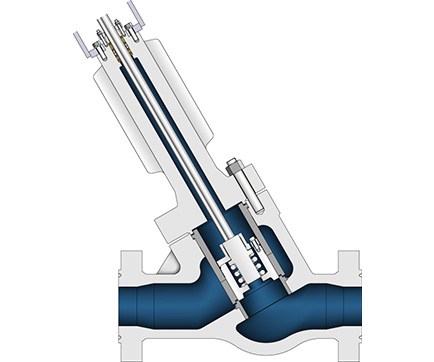

Pilot Balance Cage Y-Type Control Valve
Control valve where a Y-shape body with less liquid stagnation and a pilot cage trim are combined.
Model no.
T-8660
Pressure Rating
ASME/ANSI 1500
End connection standard
Flange RTJ
Nominal Size (A)
200A
Body materials
SCS14A

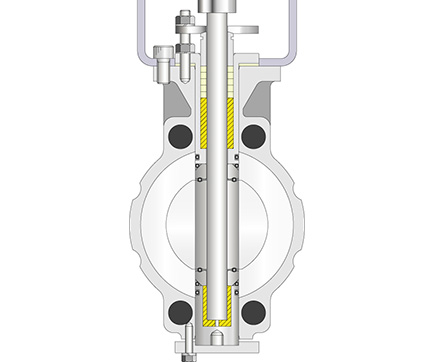

Ceramic Butterfly Valve
Ceramic butterfly valve with excellent abrasion.
Model no.
V-6850
Pressure Rating
JIS10K
End connection standard
Wafer
Nominal Size (A)
80A, 100A, 150A
Body materials
Al2O3
