【Standard specifications】 |
Model no. |
T-8110 |
Model name |

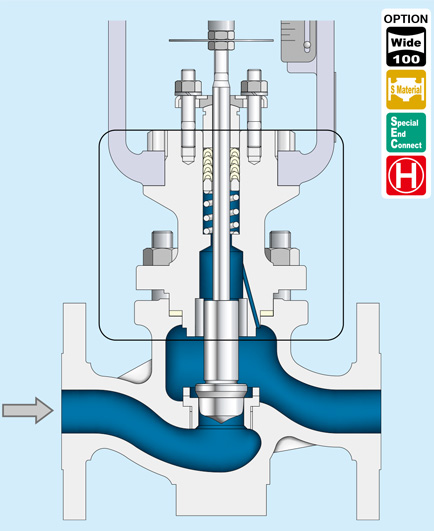

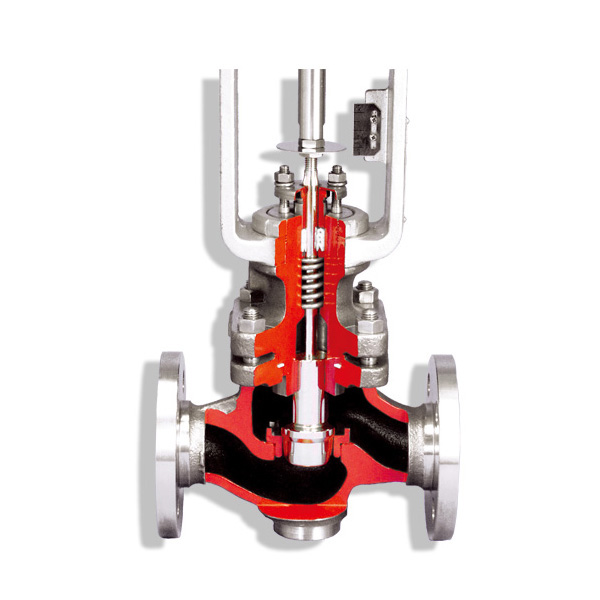

Globe Type Single Seated Control Valve |
Pressure Rating |
JIS10K~63K, ASME/ANSI150~2500 |
End connection standard |
RF·FF |
Nominal size |
15A~400A |
Rated Cv |
0.01~2560Cv |
Body materials |
FCD450, SCPH2, SCS13A, SCS14A, SCS16A, SCS18, SCS19 |
Trim Materials |
SUS316, SUS316L, HC276 |
Packing Materials |
V-PTFE · Graphite |
Gasket Materials |
PTFE · Graphite |
Flow characteristicw |
Equal percentage (Range-ability 50:1) Linear & On-Off |
The choice of actuator |
Multi-Spring Diaphragm Pnuematic Type: T-5 series
Air Cyolinder, Electonic type: MSP/PSN series
Electromotive type:CMS series |
Option |
Range-ability 100:1
Body & Trim Materials: Special Materials
PTFE DISC・Stellite
End Connection: SW, BW, Others |
|
【Standard specifications】 |
Model no. |
T-8220 |
Model name |

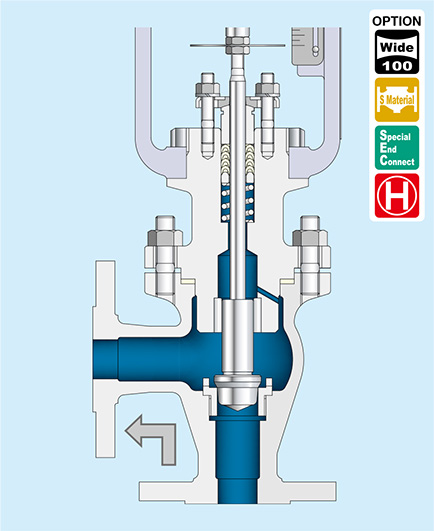

Angle Type Control Valve |
Pressure Rating |
JIS10K~63K, ASME/ANSI150~2500 |
End connection standard |
RF·FF |
Nominal size |
15A~150A |
Rated Cv |
0.01~390Cv |
Body materials |
FCD450, SCPH2, SCS13A, SCS14A, SCS16A, SCS18, SCS19 |
Trim Materials |
SUS316, SUS316L, HC276 |
Packing Materials |
V-PTFE · Graphite |
Gasket Materials |
PTFE · Graphite |
Flow characteristicw |
Equal percentage (Range-ability 50:1) Linear & On-Off |
The choice of actuator |
Multi-Spring Diaphragm Pnuematic Type: T-5 series
Air Cyolinder, Electonic type: MSP/PSN series
Electromotive type:CMS series |
Option |
Range-ability 100:1
Body & Trim Materials: Special Materials
PTFE DISC・Stellite
End Connection: SW, BW, Others |
|
