For low temperature and ultra-low temperature

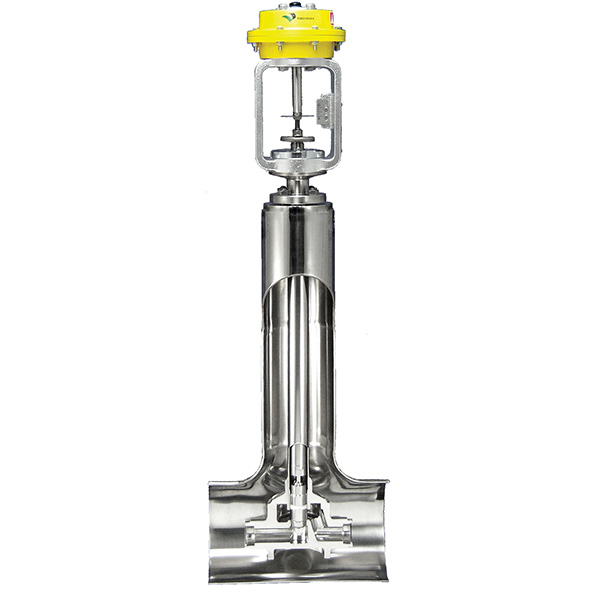

This valve is a control ultla-low temperature fluid, such as liquid helium whose service temperature is close to the absolute zero degree. The valve is installed by welding in a vacuum container.
Product Details
This valve is a control ultla-low temperature fluid, such as liquid helium whose service temperature is close to the absolute zero degree. The valve is installed by welding in a vacuum container.
The valve is installed by welding in a vacuum container.
The valve trim has a structure which prevents galling themal oscillation at low-temperature operation and provides good shutoff performance even if the pipe is deformed to some degree due to thermal change.

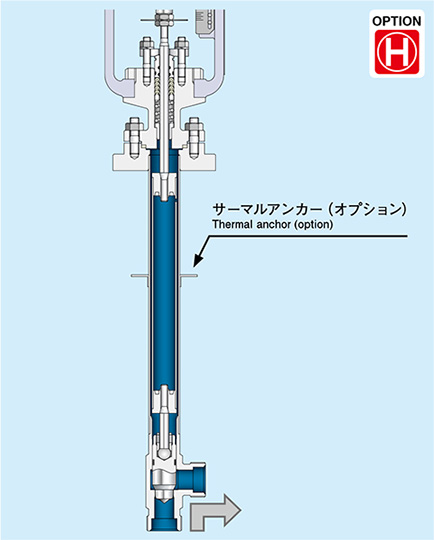

T-8800
Angle type Super-low temperature control valve
(Vacuum Containers)

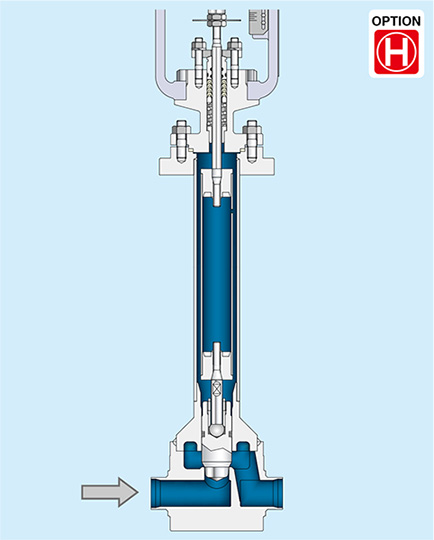

T-8810
Super-low temperature control valve
(Vacuum Containers)
【Standard specifications】
Model no.
T-8800
Model name
Angle type Super-low temperature control valve
End connection standard
Socket Weld End ・Butt Weld End
Nominal size
4A~400A
Rated Cv
0.01~2560Cv
Body materials
SUS316L
Bonnet materials
SUS316L
Valve Stem Materials
SUS316L
Plug Materials
SUS316L+ PCTFE DISC
Extension Pipe Materials
SUS316L
Extension Pipe Length
500 · 630 · 800 · 1000 mm
Bellows materials, withstanding pressure
SUS316L-3MPaG
Gasket Materials
Serrated Type Metal Gasket
Flow characteristicw
Equal percentage (Range-ability 50:1)・Linear・On-Off
Seat Leakage
Below 1X10-7Pa・m3/sec
Outside Leakage
Below 1X10-9Pa・m3/sec
The choice of actuator
Multi-Spring Diaphragm Pnuematic Type: T-5 series
Electonic type: MSP/PSN series
Electromotive type:CMS series
Option
Valve Stem Materials: FRP
Range-ability 100:1
Helium Leak Test・Vacuum Jacket・Thermal Anchor
Bellows Withstanding Pressure: Special design
【Standard specifications】
Model no.
T-8810
Model name
Super-low temperature control valve
End connection standard
Socket Weld End ・Butt Weld End
Nominal size
4A~80A
Rated Cv
0.01~115Cv
Body materials
SUS316L
Bonnet materials
SUS316L
Valve Stem Materials
SUS316L
Plug Materials
SUS316L+ PCTFE DISC
Extension Pipe Materials
SUS316L
Extension Pipe Length
500 · 630 · 800 · 1000 mm
Bellows materials, withstanding pressure
SUS316L-3MPaG
Gasket Materials
Serrated Type Metal Gasket
Flow characteristicw
Equal percentage (Range-ability 50:1)・Linear・On-Off
Seat Leakage
Below 1X10-7Pa・m3/sec
Outside Leakage
Below 1X10-9Pa・m3/sec
The choice of actuator
Multi-Spring Diaphragm Pnuematic Type: T-5 series
Electonic type: MSP/PSN series
Electromotive type:CMS series
Option
Valve Stem Materials: FRP
Range-ability 100:1
Helium Leak Test・Vacuum Jacket・Thermal Anchor
Bellows Withstanding Pressure: Special design
