Micro flow control valve
Type T-8020 control valve is a control value suitable for very small flow control. The valve is screwed connection type, small and lightweight.
Product Details
Type T-8020 control valve is a control value suitable for very small flow control. The valve is screwed connection type, small and lightweight.

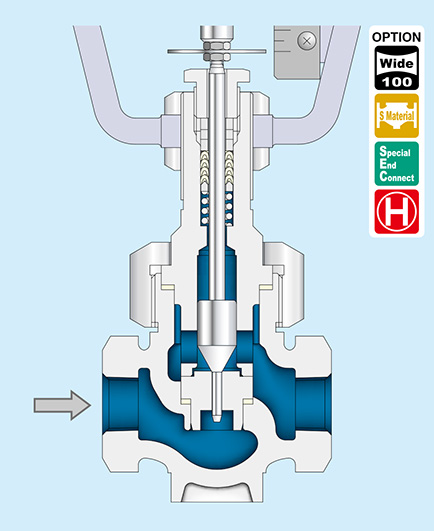

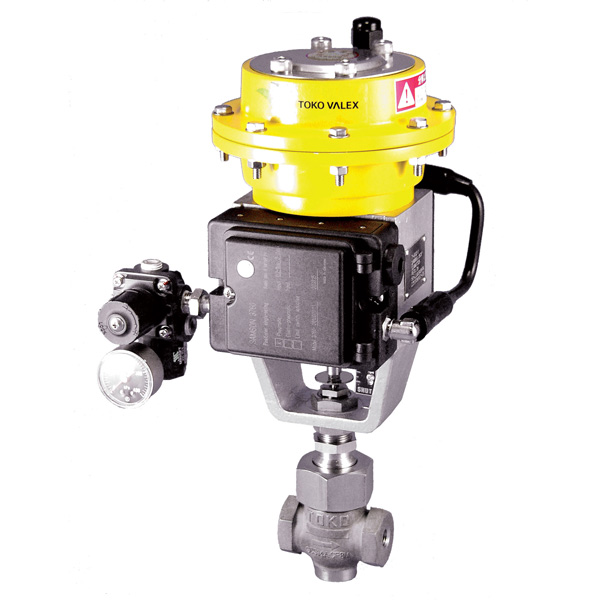

T-8020 Low Flow Control Valve
T-8020 Low Temp. and Low Flow Control Valve
【Standard specifications】
Model no.
T-8020
Model name
Micro flow control valve
Pressure Rating
ANSI600
End connection standard
Threaded Ends (Rc · NPT)
Nominal Size (A)
8A~15A
Rated Cv
0.0001~2Cv
Body materials
SCS14A
Trim Materials
SUS316 · Polyimide
Packing Materials
V-PTFE
Gasket Materials
PTFE · PCTFE
Flow characteristicw
Equal percentage (Range-ability 50:1) / To rate Cv 0.06
Equal percentage (Range-ability 30:1) / To rate Cv 0.007
Equal percentage (Range-ability 20:1) / To rate Cv 0.001
Linear
The choice of actuator
Multi-Spring Diaphragm Pnuematic Type: T-5 series
Electonic type: MSP series
Option
Range-ability 100:1 / To rate Cv 0.06
Body & Trim Materials: Special Materials
Trim Treatment: Stellite
End Connection: Flange, SW, BW, Others
