For food and drink

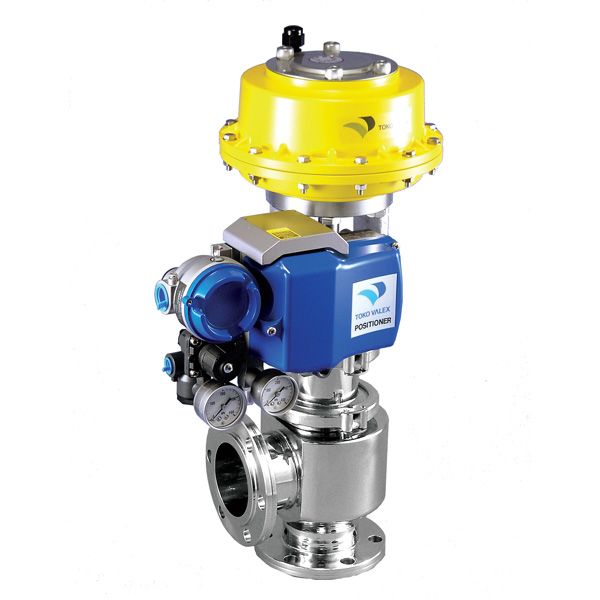

Type T-8900 sanitary control valve is a control valve for sanitary processes of food, beverages, chemicals, etc.
The control valve features a clamp type partitioned structure with less liquid stagnation. Since disassembly and cleaning of the valve are easy, the valve achieves good sanitation and easy maintenance.

Product Details

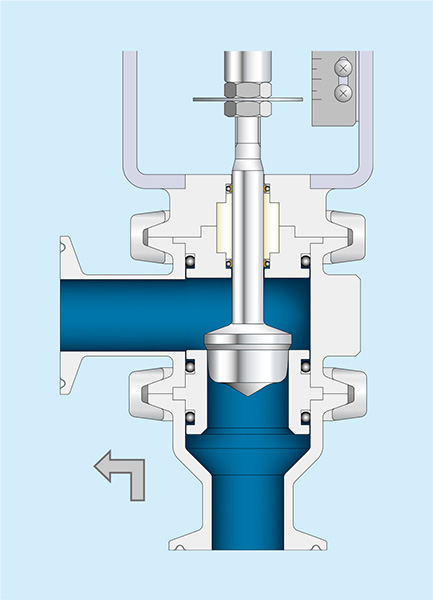

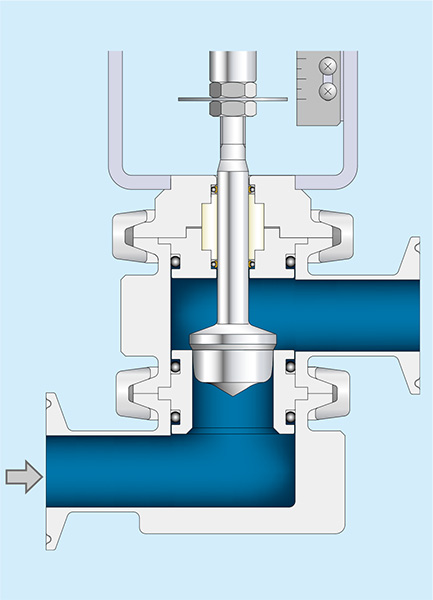

T-8910 Sanitary Control Valve	T-8920 Angle Type Sanitary Control Valve

【Standard specifications】

Model no.	T-8910
Model name	Sanitary Control Valve
End connection standard	IDF/ISO Standard Screw, W-Ferrule Clamp
Nominal Size (S)	1/2S～4S
Rated Cv	0.02～180Cv
Body materials	SUS304, SUS316, SUS316L
Bonnet materials	SUS304, SUS316, SUS316L
Trim Materials	SUS304, SUS316, SUS316L
Internal Finish	Buffing #400
Gasket Materials	FPM O"Ring
Flow characteristicw	Equal percentage (Range-ability 50:1) Linear & On-Off
The choice of actuator	Multi-Spring Diaphragm Pnuematic Type: T-5 series
Option	Trim Treatment: Stellite Internal Finish: Electrochemical Polishing

【Standard specifications】

Model no.	T-8920
Model name	Angle Type Sasnitary Control Valve
End connection standard	IDF/ISO Standard Screw, W-Ferrule Clamp
Nominal Size (S)	1/2S～4S
Rated Cv	0.02～180Cv
Body materials	SUS304, SUS316, SUS316L
Bonnet materials	SUS304, SUS316, SUS316L
Trim Materials	SUS304, SUS316, SUS316L
Internal Finish	Buffing #400
Gasket Materials	FPM O"Ring
Flow characteristicw	Equal percentage (Range-ability 50:1) Linear & On-Off
The choice of actuator	Multi-Spring Diaphragm Pnuematic Type: T-5 series
Option	Trim Treatment: Stellite Internal Finish: Electrochemical Polishing

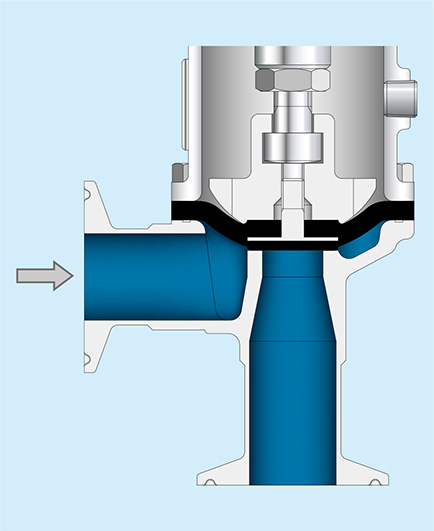

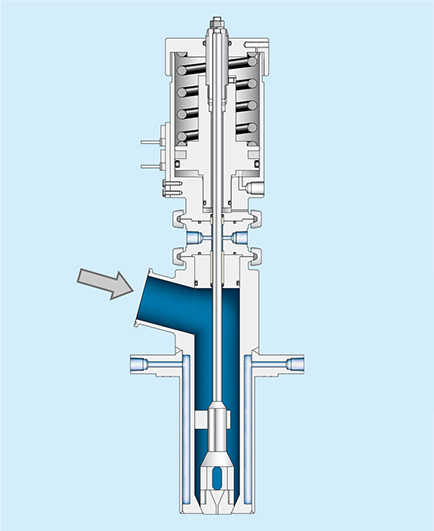

Type T-8940 sanitary valve features a simple structure with an angle style flow path which is controlled by a diaphragm.	Type V-6200 sanitary valve is a valve to supply food, etc. into a tank. The valve features an insulating hot water jacket structure to improve the fluidity of the food in the valve.

T-8450 Diaphragm Sanitary Valve	V-6200 Angle Typ eJacket Covered Sanitary Valve

【Standard specifications】

Model no.	T-8940
Model name	Diaphragm Sanitary Valve
End connection standard	IDF/ISO Standard Screw, W-Ferrule Clamp
Nominal Size (S)	1S
Body materials	SCS13A
Diaphragm Materials	EPDM
Bonnet materials	SCS13A
Trim Materials	SUS304
Internal Finish	Buffing #400
Flow characteristicw	Inherent Flow Characteristic (On-Off)
Option	Internal Finish: Electrochemical Polishing

【Standard specifications】

Model no.	V-6200
Model name	Angle Typ eJacket Covered Sanitary Valve
End connection standard	IDF/ISO Standard Screw, W-Ferrule Clamp
Nominal Size (S)	2S, 3S
Body materials	SUS316
Trim Materials	SUS316
Internal Finish	Buffing #400
Option	Internal Finish: Electrochemical Polishing
