| 【Standard specifications】 |
| Model no. |
T-8115 |
| Model name |

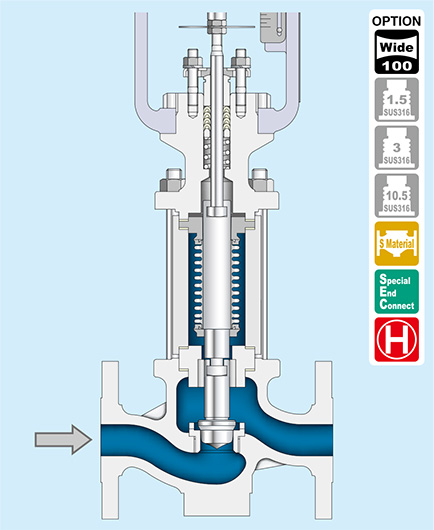

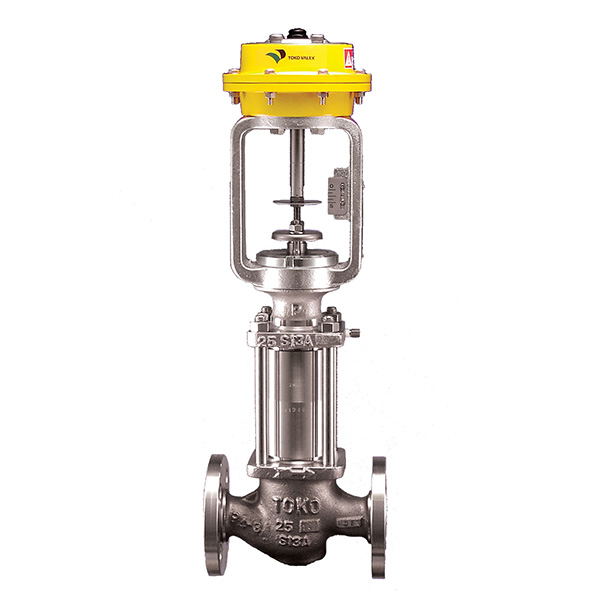

Single Seated Bellows Control Valve |
| Pressure Rating |
JIS10K～63K, ASME/ANSI150～1500 |
| End connection standard |
RF·FF |
| Nominal Size (A) |
15A～400A |
| Rated Cv |
0.01～2560Cv |
| Body materials |
FCD450, SCPH2, SCS13A, SCS14A, SCS16A, SCS18, SCS19 |
| Trim Materials |
SUS316, SUS316L, HC276 |
| Bellows Materials |
SUS316, SUS316L, HC22, MONEL |
| Packing Materials |
V-PTFE · Graphite |
| Gasket Materials |
PTFE · Graphite |
| Flow characteristicw |
Equal percentage (Range-ability 50:1) Linear & On-Off |
| The choice of actuator |
Multi-Spring Diaphragm Pnuematic Type: T-5 series
Air Cyolinder, Electonic type: MSP/PSN series
Electromotive type：CMS series |
| Option |
Range-ability 100:1, Steam Jackets
Body & Trim Materials: Special Materials
PTFE DISC・Stellite
End Connection: SW, BW, Others |
|
| 【Standard specifications】 |
| Model no. |
V-5705 |
| Model name |

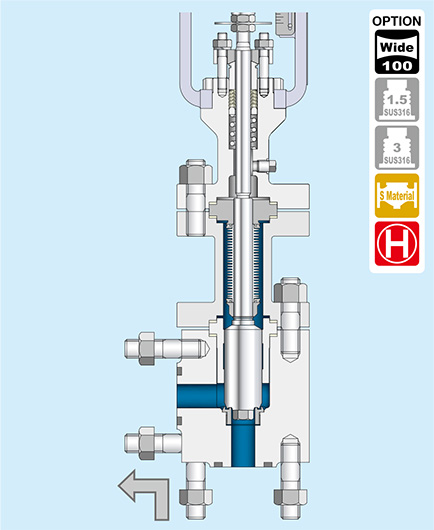

High Pressure Bellows Angle Type Control Valve |
| Pressure Rating |
JIS63K, ASME/ANSI900 |
| End connection standard |
Stud Bolt Type |
| Nominal Size (A) |
25A (We can produce the valve at other size） |
| Rated Cv |
13Cv （We can produce the valve at other size） |
| Body materials |
SUS304 |
| Trim Materials |
SUS304 |
| Bellows Materials |
SUS316 |
| Packing Materials |
V-PTFE |
| Gasket Materials |
SPL. PTFE |
| Flow characteristicw |
Equal percentage (Range-ability 50:1) Linear & On-Off |
| The choice of actuator |
Multi-Spring Diaphragm Pnuematic Type: T-5 series
Air Cyolinder, Electonic type: MSP/PSN series
Electromotive type：CMS series |
| Option |
Range-ability 100:1
Body & Trim Materials: Special Materials
PTFE DISC・Stellite
End Connection: SW, BW, Others |
|
