| 【Standard specifications】 |
| Model no. |
V-5513 |
| Model name |

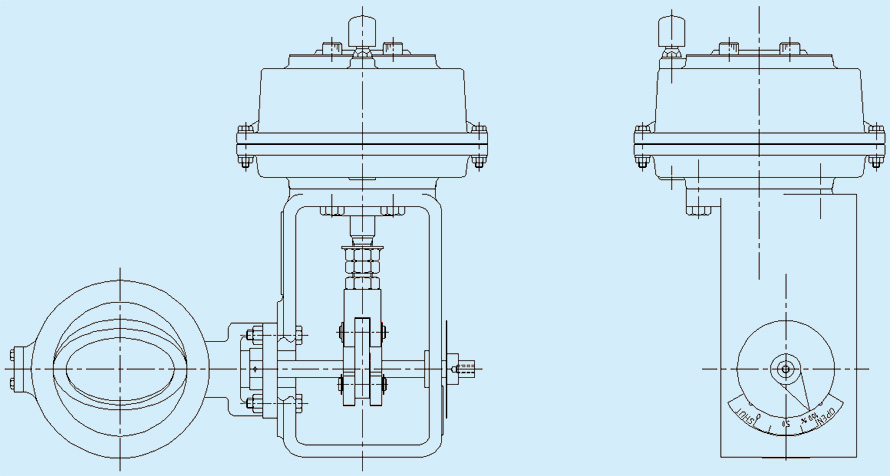

Butterfly type control valve |
| Pressure Rating |
JIS10K, ASME/ANSI150 |
| End connection standard |
Wafer |
| Nominal Size (A) |
80A～300A |
| Rated Cv |
120～2990Cv |
| Body materials |
SCS13, SCS14, SCS16, SCS18 |
| Body Material |
SCS13 , SCS14 , SCS16 , SCS18 , HC-276 |
| Blade Materials |
SUS304 , SUS316 , SUS310S , HC-276 |
| Shaft Materials |
SUS316, Polyimide |
| Seat Materials |
PTFE |
| Flow characteristicw |
Tight Shut-Off, Inh. Characteristicw(20～60°) |
| The choice of actuator |
Multi-Spring Diaphragm Pnuematic Type: B-5 series |
|
