For mixing and diverging

There are two kinds of three-way control valves. One is a mixing three-way valve which mixes two kinds of fluid into one.
The other is a flow dividing three-way valve which divides fluid into two directions.

Product Details

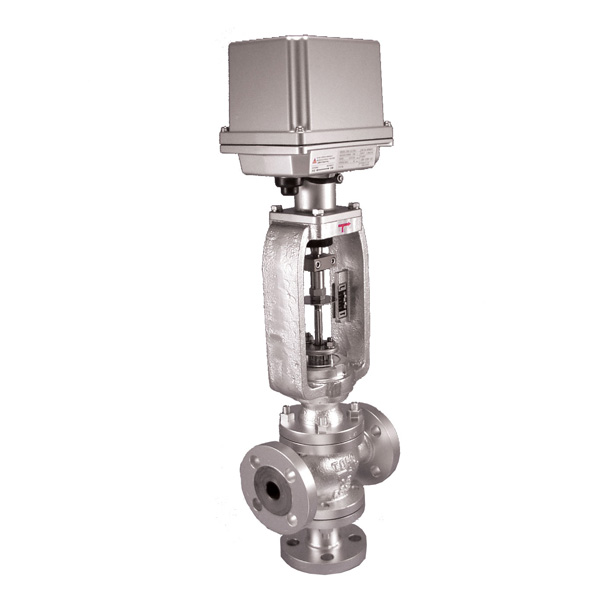

V-5310, V-5320 Mixing Type 3-Way Control Valve	V-5310, V-5320, V-5330 Dividing Type 3-Way Control Valve

【Standard specifications】

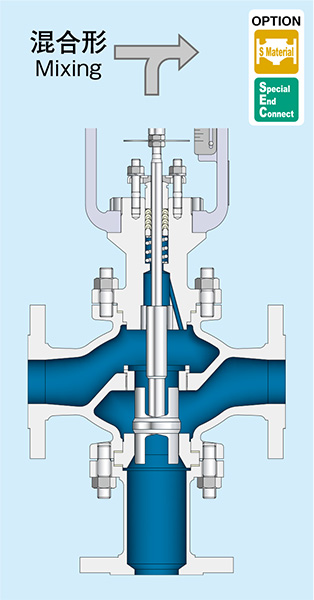

Model no.	V-5310, V-5320
Model name	Mixing Type 3-Way Control Valve
Pressure Rating	JIS10K～20K, ASME/ANSI150～300
End connection standard	Flange RF
Nominal Size (A)	15A～20A(V-5310), 25A～300A(V-5320)
Rated Cv	5～1440Cv
Body materials	FC250, SCPH2, SCS13, SCS14
Trim Materials	SUS316
Packing Materials	V-PTFE · Graphite
Gasket Materials	PTFE · Graphite
Flow characteristicw	Linear・On-Off
The choice of actuator	Multi-Spring Diaphragm Pnuematic Type: T-5 series Air Cyolinder, Electonic type: PSN series Electromotive type：CMS series
Option	Extension Bonnet, Cooling Fin, Bellows Body & Trim Materials: Special Materials Stellite

【Standard specifications】

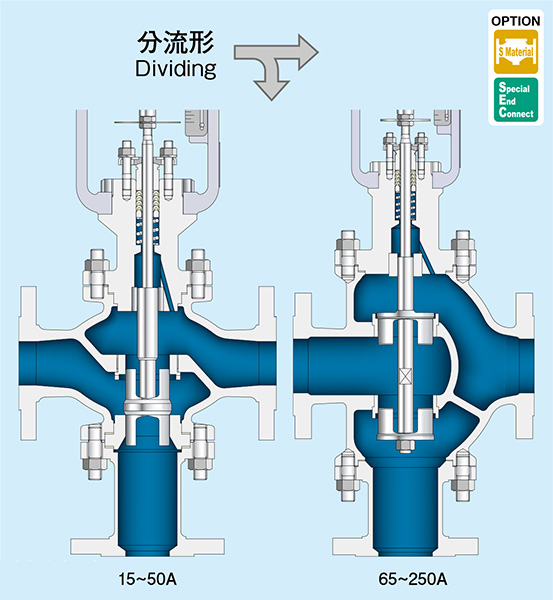

Model no.	V-5310, V-5320	V-5330
Model name	Dividing Type 3-Way Control Valve
Pressure Rating	JIS10K～20K, ASME/ANSI150～300
End connection standard	Flange RF
Nominal Size (A)	15A～20A(V-5310), 25A～50A(V-5320)	65A～300A
Rated Cv	5～48Cv	76～1440Cv
Body materials	FC250, SCPH2, SCS13, SCS14
Trim Materials	SUS316
Packing Materials	V-PTFE · Graphite
Gasket Materials	PTFE · Graphite
Flow characteristicw	Linear・On-Off
The choice of actuator	Multi-Spring Diaphragm Pnuematic Type: T-5 series Air Cyolinder, Electonic type: PSN series Electromotive type：CMS series
Option	Extension Bonnet, Cooling Fin, Bellows Body & Trim Materials: Special Materials Stellite
