For high pressure, high differential pressure, and low noise

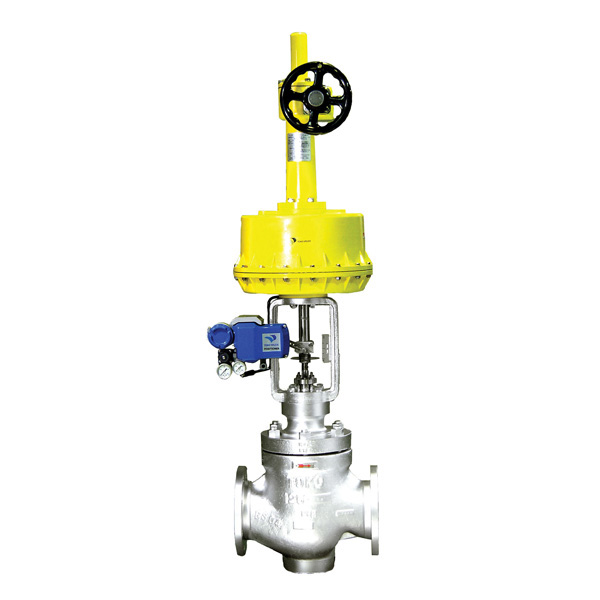

Type T-8130 contorl valves is a pressure balance control valve which is applicable to controlling high pressure
or high differential pressure fluid by balancing the pressure in the cage.
Trims can be combined according to uses. Applicable to a wide range of temperature from -196℃ to 500℃.

Product Details

T-8131　Single-Seated Type: Features high shutoff performance trim with a Teflon seal assembled in the plug.
T-8132 Double-Seated Type: Features cost effective trim with two seats, prior to shutoff performance.
T-8133 Doubel-Seated Low-Noise Type: Features a cage whose fluid passing part has many holes to reduce noise.
T-8136 Pilot Bananced Type: Features a trim with a structure where another valve seat is installed within the plug and the whole plug is actuated by
releasing the pressure with the pilot.
The valve provides high shutoff performance with small driving force.

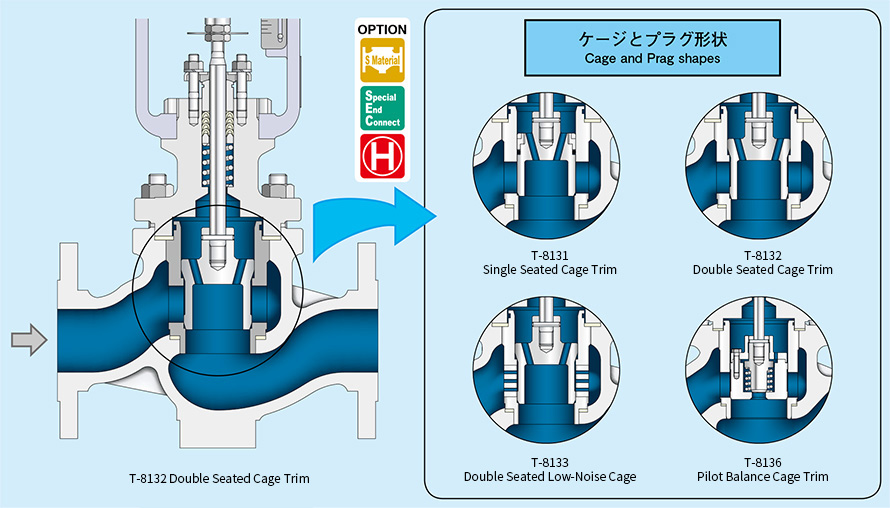

T-8132 Double Seated Cage Trim

【Standard specifications】

Model no.	T-8131	T-8132	T-8133	T-8136
Model name	Single Seat Cage Balance Type	Double Seeat Cage Balance Type	Double Seat Low-Noise Cage Type	Pilot Cage Balance Type
Cage Shape	V-Port		Multi-Holes	Pilot Balance
Pressert Rating	JIS10K～63K, ASME/ANSI150～2500
End connection standard	Flange End RF, Socket Weld End, Butt Weld End
Nominal Size (A)	15A～400A
Rated Cv	0.01～2560Cv
Body materials	FCD450, SCPH2, SCS13A, SCS14A, SCS16A, SCS18, SCS19
Trim Materials	SUS316, SUS316L, SUS630, HC276
Packing Materials	V-PTFE · Graphite
Gasket Materials	PTFE · Graphite
Flow characteristicw	Equal percentage (Range-ability 50:1) & Linear
The choice of actuator	Multi-Spring Diaphragm Pnuematic Type: T-5 series, Air Cyolinder Electonic type: MSP/PSN series, Electromotive type：CMS series
Option	Special Packing, Extension Bonnet, Cooling Fin, Special End Connection
