For tank bottom
Tank bottom valve is a valve for extraction or discharge of fluid. The valve is installed on the bottom of a tank, such as a polymerization tank and an agitating tank.
Product Details
Tank bottom valve is a valve for extraction or discharge of fluid. The valve is installed on the bottom of a tank, such as a polymerization tank and an agitating tank.

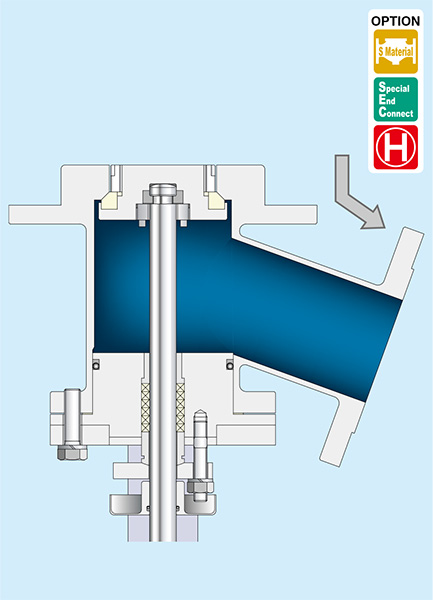

V-6110 Inside Valve Type Tank Bottom Valve

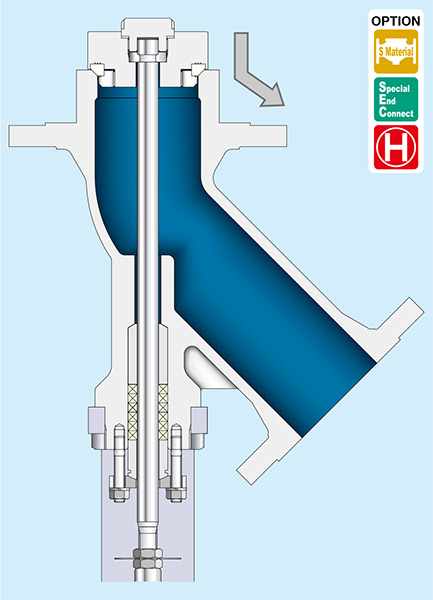

V-6120 Outside Valve Type Tank Bottom Valve
【Standard specifications】
Model no.
V-6110
Model name
Inside Valve Type Tank Bottom Valve
End connection standard
Flange RF
Pressure Rating
JIS10K, ASME/ANSI150
Nominal Size (A)
25A~250A
Rated Cv
12~1000Cv
Body materials
SUS304, SUS316
Trim Materials
SUS316
Gasket Materials
PTFE · Graphite
Flow characteristicw
Quick Opening (On-Off)
The choice of actuator
Air Cylinder
Option
Special End Conn.・Tank Joint Dimension,
Special Materials
【Standard specifications】
Model no.
V-6120
Model name
Outside Valve Type Tank Bottom Valve
End connection standard
Flange RF
Pressure Rating
JIS10K, ASME/ANSI150
Nominal Size (A)
25A~250A
Rated Cv
12~1000Cv
Body materials
SCS13A, SCS14A
Trim Materials
SUS316
Gasket Materials
PTFE · Graphite
Flow characteristicw
Quick Opening (On-Off)
The choice of actuator
Air Cylinder
Option
Special End Conn.・Tank Joint Dimension,
Special Materials

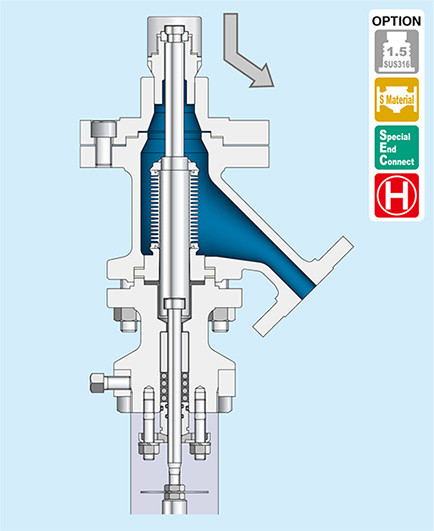

V-6125 Outside Valve Type Bellows Tank Bottom Valve

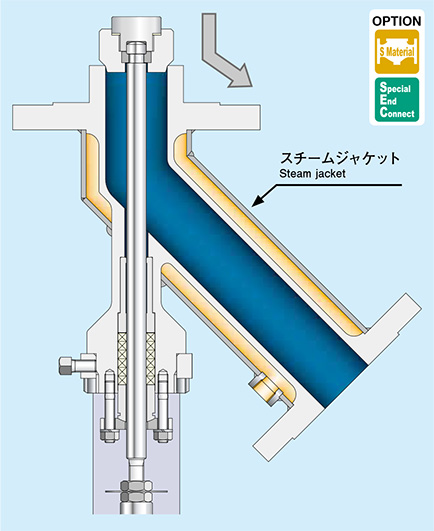

V-6123 Outside Valve Type Steam Jacket Tank Bottom Valve
【Standard specifications】
Model no.
V-6125
Model name
Outside Valve Type Bellows Tank Bottom Valve
End connection standard
Flange RF
Pressure Rating
JIS10K, ASME/ANSI150
Nominal Size (A)
25A~250A
Rated Cv
12~1000Cv
Body materials
SCS13A, SCS14A
阀内件材质
SUS316
Gasket Materials
PTFE · Graphite
Bellows Materials
SUS316, 1.5MPaG
Flow characteristicw
Quick Opening (On-Off)
The choice of actuator
Air Cylinder
Option
Special End Conn.・Tank Joint Dimension,
Special Materials
【Standard specifications】
Model no.
V-6123
Model name
Outside Valve Type Steam Jacket Tank Bottom Valve
End connection standard
Flange RF
Pressure Rating
JIS10K, ASME/ANSI150
Nominal Size (A)
25A~250A
Rated Cv
12~1000Cv
Body materials
SCS13A, SCS14A
阀内件材质
SUS316
Gasket Materials
PTFE · Graphite
Bellows Materials
SUS304
Flow characteristicw
Quick Opening (On-Off)
The choice of actuator
Air Cylinder
Option
Special End Conn.・Tank Joint Dimension,
Special Materials
